Corghi

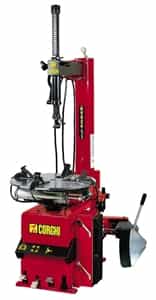

Corghi A9824TI - Swing Arm Tire Changer (Air/Elec)

Corghi A9824TI - Swing Arm Tire Changer (Air/Elec)

$6,153.00 USD
$0.00 USD $6,153.00 USD
Sale Sold out

Passenger, Light Truck Tire Changer Air or Elec
Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That’s why Corghi was awarded ISO 9001 Quality Certification, industry’s most coveted award. Run-flat certified by all major tire manufacturers.
Features
  • Available in electric or air motor.
  • Electric motor comes standard with 2 speed forward & 1 speed reverse table tops
  • Built-in table inflator with jets in the jaws.
  • Unique mount/demount head does not touch the rim during operation.
  • Locking handle locks head away from the rim.
  • Powerful action bead-breaker blade follows bead to inside rim contour.
  • Heavy-duty turntable rotates in either direction.
  • Rebuildable stainless steel cylinders.
  • Heavy-duty stainless steel turntable.
  • Safe, fast, profitable and affordable.
  • Bead-pressing lever.
  • Upper arm assembly swings out-of-way.
  • Shipping weight 608 lbs.
Specifications A9824TI
Max. Tire Diameter 47"
Max Rim Width 14"
Rim Diameter - Internal 13” to 26”
Rim Diameter - External 10” - 24”
Rim Diameter w/Adapters - External 8” to 28”
Table Top Rotation Torque 737 ft-lb
Table Top Rotation Speed 11 rpm
Power Requirements 110 V / 1PH / 50 Hz
Air Requirements 130 psi
Dimensions - Max 78" H x 48" W x 42" D
Weight 503 lbs.
