Challenger 44030 - 30,000 lb. Capacity 4-Post Lift
Challenger 44030 - 30,000 lb. Capacity 4-Post Lift
Regular price
$28,349.00 USD
Regular price
$0.00 USD
Sale price
$28,349.00 USD
Unit price
/
per

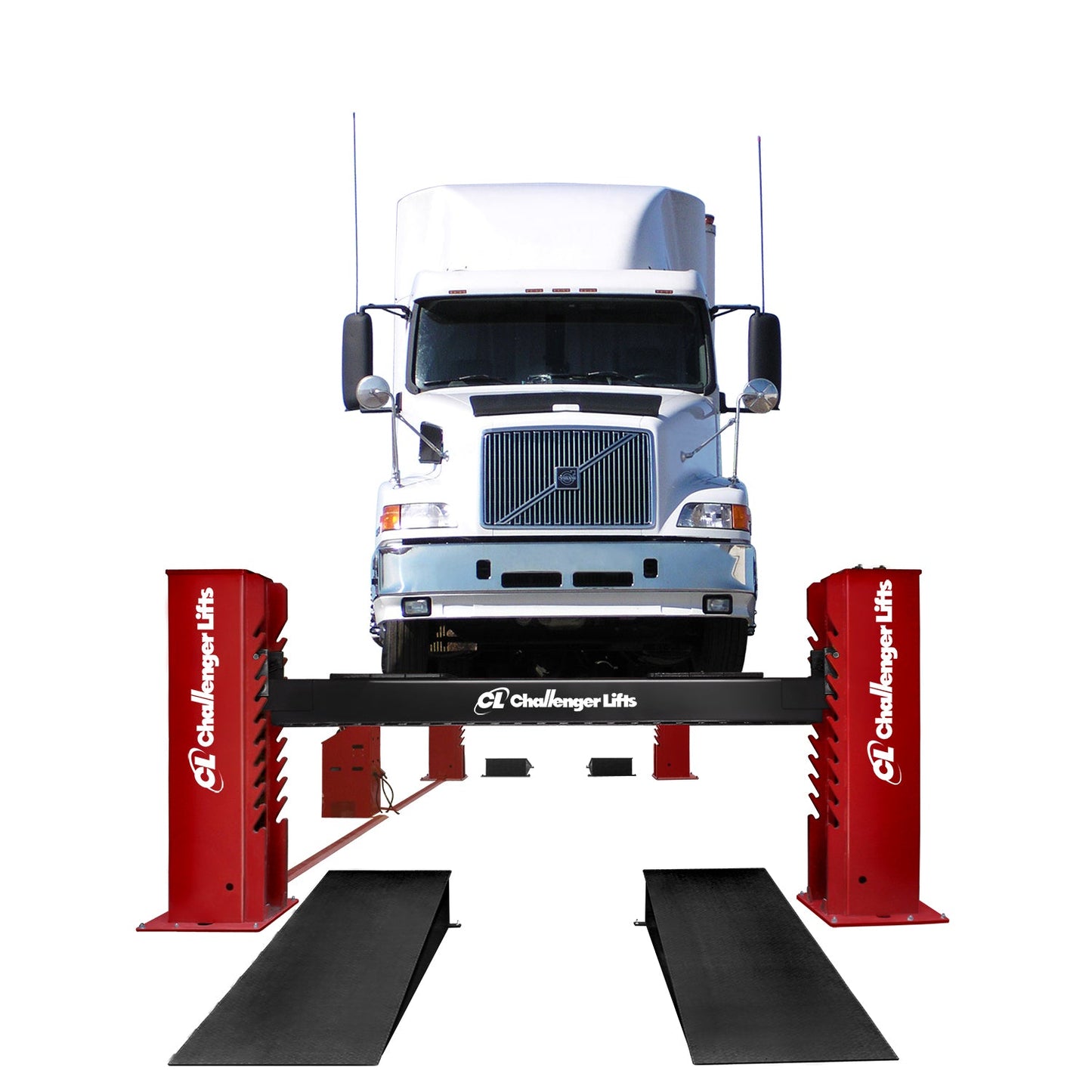

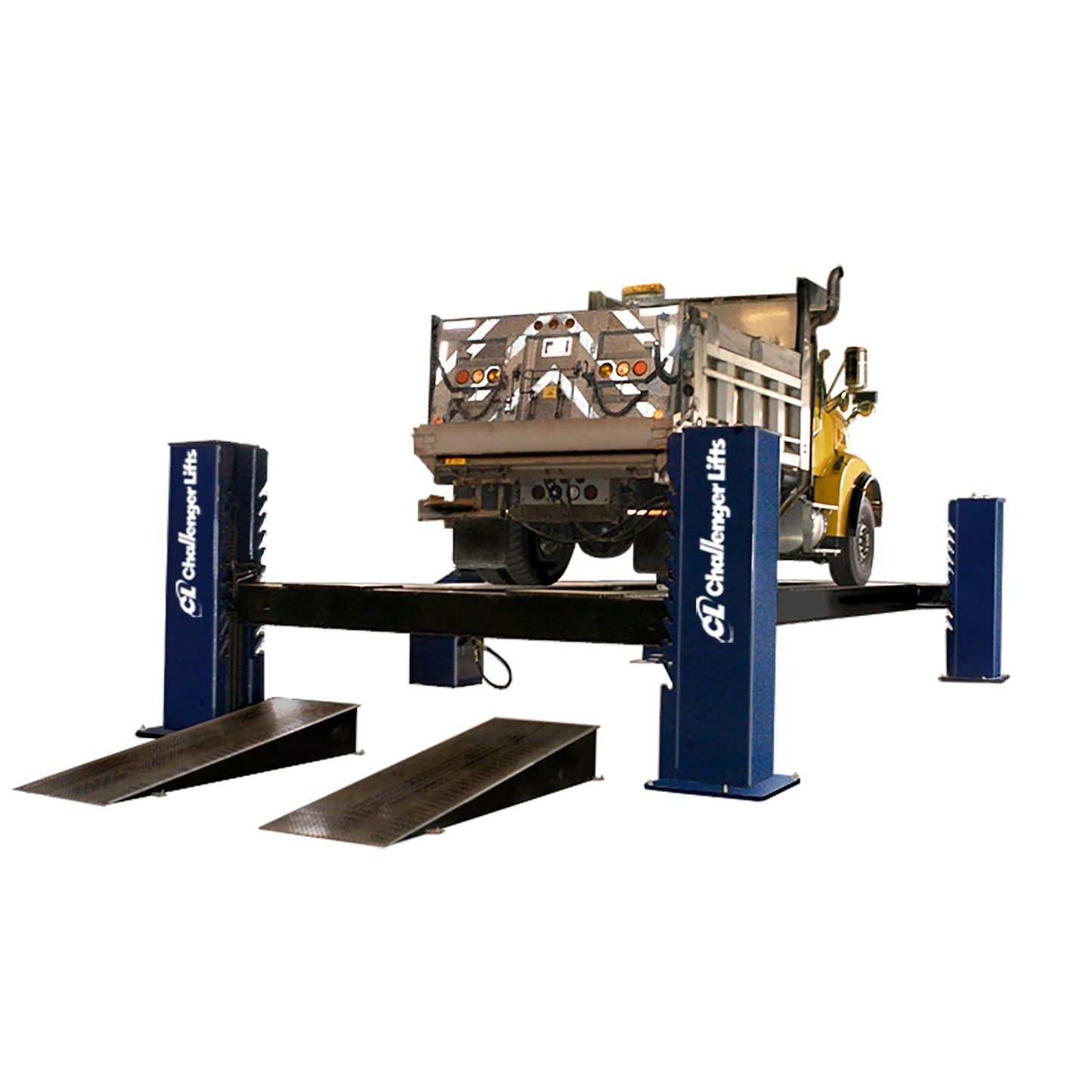

The 30,000 lb. capacity heavy duty four post truck lift features a superior lifting system with high tensile strength leaf chain and sealed roller bearings for maximum reliability. Heavy Duty hydraulic cylinders provide optimum lifting with minimum maintenance. Other features and benefits of the 44030 four post lifts include a single point air lock release to disengage all post column locks simultaneously, diamond plate approach ramps and anti-skid runway surfaces for positive traction upon approach and unload, just to name a few.
Features
- Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation
- Heavy duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan
Model Number
|
|
|
|
|
|
|
---|---|---|---|---|---|---|
Lift Capacity |
30,000 lbs.
|
|||||
A Overall Length
|
24' 7-1/2"
|
29' 7-1/2"
|
34' 7-1/2"
|
|||
B Overall Width
|
Min. 27" / Max. 41"(686mm / 1041mm)
|
Min. 19-13/16" / Max. 42"(956mm / 1524mm)
|
||||
C Inside Columns
|
132-1/2"
|
|||||
D Between Columns
|
233-3/4"
|
293-3/4"
|
353-3/4"
|
|||
E Overall Height
|
92"
|
|||||
F Height of Runways
|
9"
|
|||||
G Width of Runways
|
24"
|
|||||
H Width Between Runways
|
54" - 75"
|
|||||
I Maximum Wheelbase
|
230"
|
290"
|
350"
|
|||
J Rise Height
|
68"
|
|||||
Max. 2 Wheel Align
|
N/A
|
206"
|
N/A
|
266"
|
N/A
|
326"
|
Motor
|
3HP
|
|||||
Voltage
|
208v - 230v
|
|||||
Speed of Rise
|
105 seconds
|
|||||
Amps
|
30
|
|||||
Shipping Weight
|
5250 lbs
(2381 kg) |
5450 lbs
(2472 kg) |
5750 lbs
(2608 kg) |
5950 lbs
(2699 kg) |
6250 lbs
(2835 kg) |
6450 lbs
(2926 kg) |
