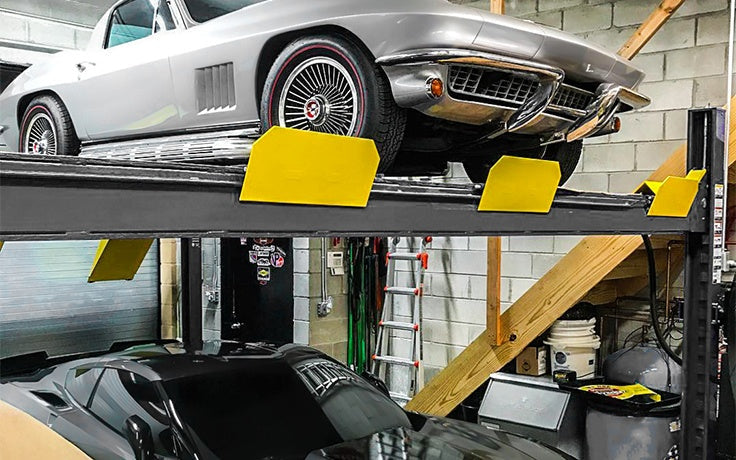

  • BendPak HD-9SW - 9,000 lb. Capacity 4-Post Lift in Garage

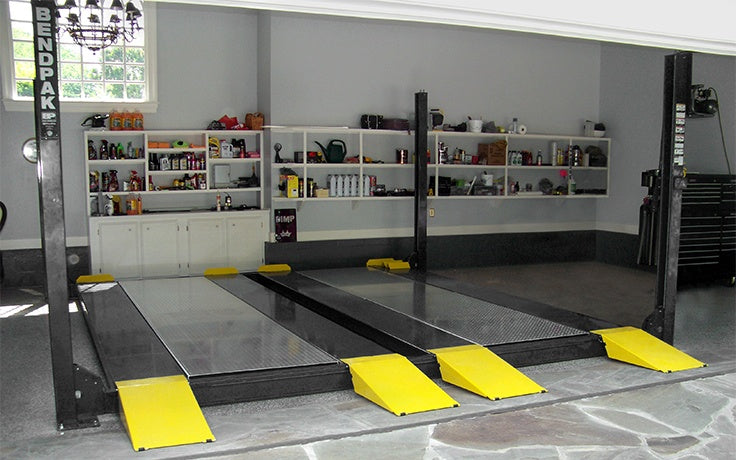

  • BendPak HD-9SW - 9,000 lb. Capacity 4-Post Lift in garage
1 3

BendPak

BendPak HD-9SW - 9,000 lb. Capacity 4-Post Lift

BendPak HD-9SW - 9,000 lb. Capacity 4-Post Lift

$9,970.00 USD
$0.00 USD $9,970.00 USD
Sale Sold out

To accommodate super-wide vehicles on a 9,000-lb. capacity four-post lift, choose the HD-9SW. The “SW” stands for super-wide, and it’s the ideal four-post lift to double your parking and/or service wider vehicles.

Features & Benefits

  • 9,000 Pound Lifting Capacity
  • Standard rise
  • Shorter runway for smaller spaces
  • Runways accommodate wide or narrow vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1-1/4" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Optional Adjustable Limit Microswitch
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available
Specifications HD-9SW
LiftingCapacity*
*Max Capacity/ FrontAxle
*Max Capacity / RearAxle		 9,000 lbs. / 4082 kg.
4,500 lbs. / 2041 kg
4,500 lbs. / 2041 kg.
Overall Width 202" / 5,131 mm
Outside Length 174” / 4420 mm
Overall Length 200” / 5080 mm
D ‐ Height of Columns 88” / 2235 mm.
E – Min.Runway Height 7” / 178 mm.
F – Max.Rise 70” / 1778 mm.
G ‐ Max.Lifting Height 77" / 1956 mm.
H ‐ Width Between Posts 192” / 4877 mm.
I ‐ Runway Width 19” / 483 mm.
J ‐ Width Between Runways 37” - 42" / 940 mm. - 1067 mm.
K ‐ Length of Runways 164” / 4166 mm.
L - Outside Column Spacing 15-1/2" / 394"
Min.Wheelbase @ Rated Capacity 115" / 2921 mm.
Min.Wheelbase @ 75% Capacity 100" / 2540 mm.
Min.Wheelbase @ 50% Capacity 85" / 2159 m.
Min.Wheelbase @ 25% Capacity 70" / 1778 mm.
Locking Positions 12
Lock Spacing Every 4" / 102 mm.
Lifting Time 55 Seconds
Standard Motor(*) 220 VAC / 60 Hz. 1Ph.
